Diff Laminating Brace Strengthening Kit Suits Nissan Patrol GQ & GU

This Kit Has Been Fitted To Dozens Of Vehicles, All Testing Has Shown This Kit Can Be Mounted To The Top Of The Housing Without Creating Any Clearance Issues Between Sump And Diff, Extended Bumpstops May Be Required, It Is Advised To Check This Before Welding!!

This Kit Has Been Designed To Use On Both GQ & GU Easily. If On a GQ Or Maverick, The Length Of The Main 3mm Folded Gusset Needs To Be Trimmed Down To Suit, This Is Only One Straight Cut (In Time These Will Have a Bezelled Line Marking This For You)

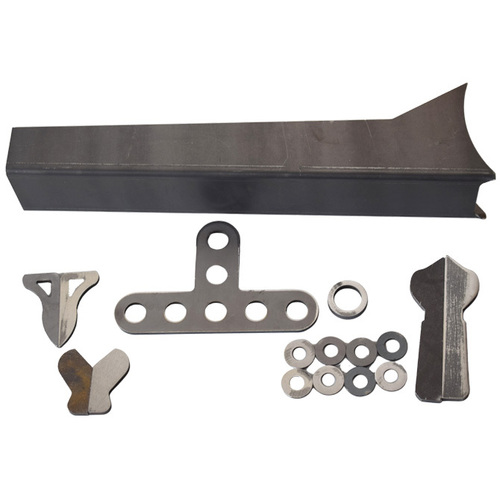

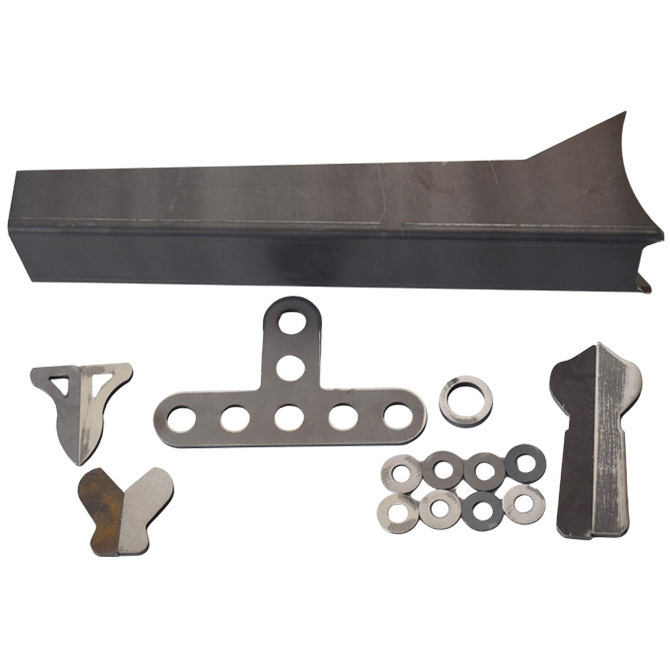

Kit Includes

1 x 3mm Folded Gusset (Can Be Mounted Under Or On Top Of Diff)

2 x 8mm Long Underside Gussets To Knuckle

2 x 8mm Short Top Side Gussets To Knuckle

2 x 6mm Back Stay Braces To Ensure Diff Does Not Bend Backwards On Hard Hits.

1 x 6mm Pinion Guard, Protect Your Pinion From Hard Hits.

8 x 3mm Radius Arm Bolt Washers - To Ensure Bolts Do Not Flog Out The Housing.

1 x 8mm Drain Plug Ring - To Protect Your Drain Plug.
