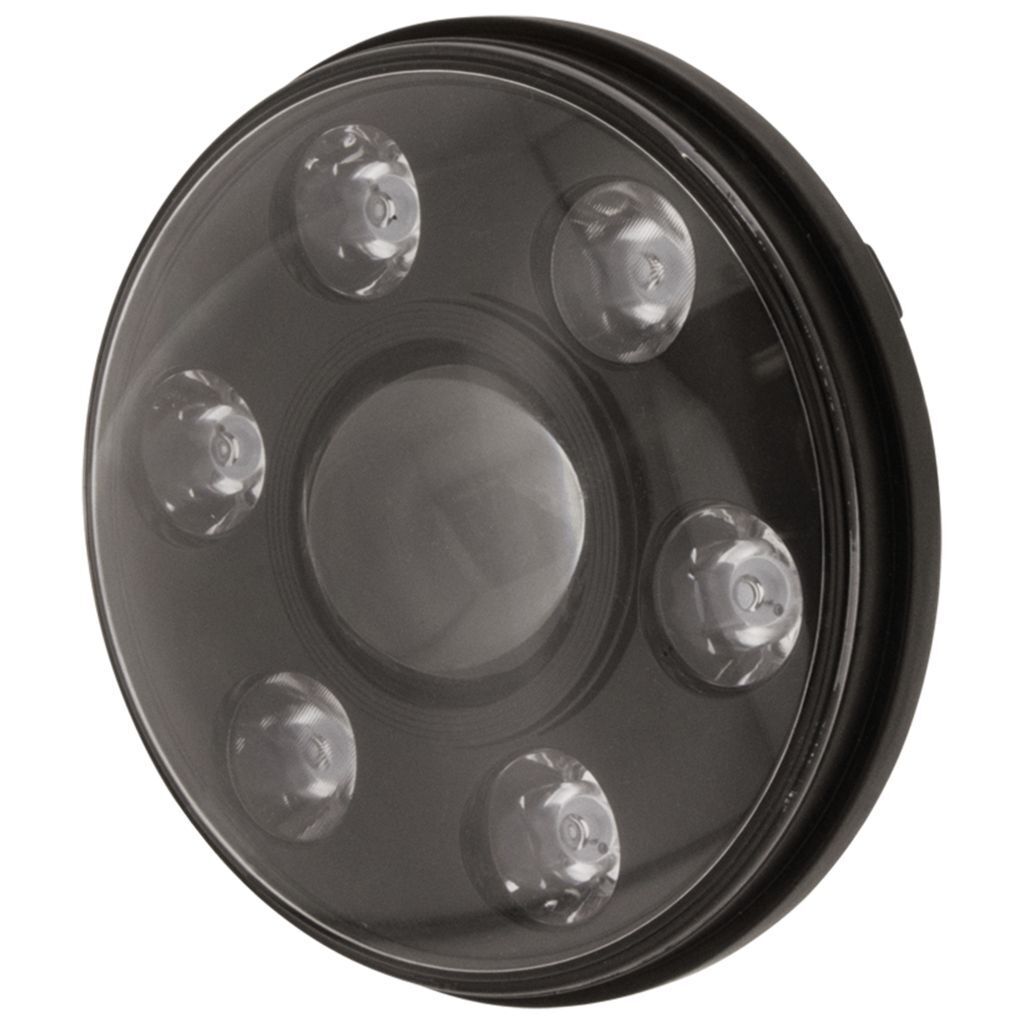

Ignite 7" Round LED Headlamp 9 - 36 Volt 65 Watt

High/Low Beam and Park Light - Black Fascia

7" or 178mm Round

6 x 10 Watt High Intensity CREE LEDs for Park Light and High Beam

1 x 5 Watt High Intensity Phillips LED for Low Beam

Current Draw: 4.10amp at 12 Volt, 1.80amp at 24 Volt High Beam

1.70amp at 12 Volt, 0.80amp at 24 Volt for Low Beam

High Beam 3,900 Raw or 3,100 Effective Lumens and 6,500K

Low Beam 1,800 Raw or 1,450 Effective Lumens and 6,500K

Lexan Polycarbonate Lens and Reflectors

Patented TIR Lens Optics System for High Beam and Park Lights

Black anodised Polyester Powder Coated Die-Cast Aluminium Housing

6063 Extruded Aluminium Heat Sink

150mm Lead with H4 Connector and High Beam Adaptor Plug

50,000 Hours LED Lifespan

Integrated Electronic Thermal Management (ETM)

Reverse Polarity and Power Surge Protection

UV Stabilized

EMC Compliant

Shock Resistant, Vibration Tested to 6G's

Environment temperature -40~+60 °C

ECE R112 / R7, DOT, CE Certified

IP68 Rating

1.4kg

5 Year Warranty

Replaces PAR56 Headlights, either Sealed or Semi-Sealed Beams

For Negatively Switched vehicles must use Adaptor Harness Part No. IWH030
